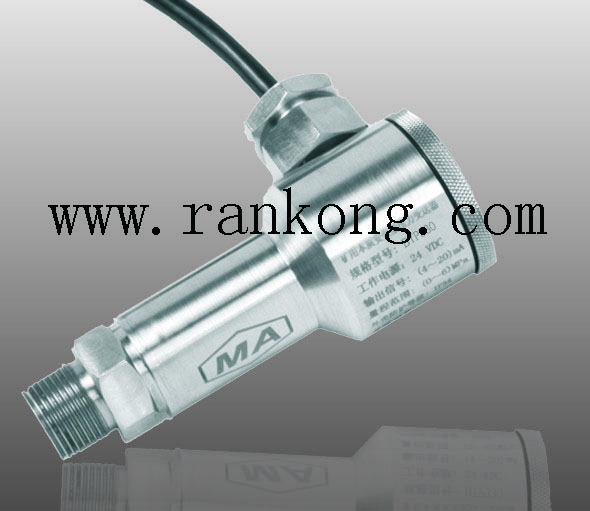

PRM301 Intrinsically Safe Pressure

PRM301 Intrinsically Safe Pressure

Piezoresistive silicon chip employed
MEMS technology
EXIA IIC T6
Measuring Range:0~1kPa...100MPa



24-hour national online service:

025-84363968
MeasuringRange:-0.1~0~0.02...100MPa
OperatingTemperature:-20~85




PowerSupply:24VDC

MeasuringRange:-0.1~0~0.02...100MPa

Shell Material:AluminiumAlloy

OperatingTemperature:-20~85

Measurement Range

0~35KPa．．．~100MPa

Proof pressure

≤1.5X rated pressure or 110MPa which ever is less

Pressure type

Gauge, absolute ,sealed gauge

Accuracy

±0.25%（Typical）  ±0.5%（Max.）

Long term stability

±0.2%F.S/year

Temperature Error- Zero

-20℃~80℃

Temperature Error -Span

-40℃~120℃

OperatingTemperatureRange

15～30VDC

Storage TemperatureRange

4～20mA    0～10/20mA   0/1～5VDC

Power supply

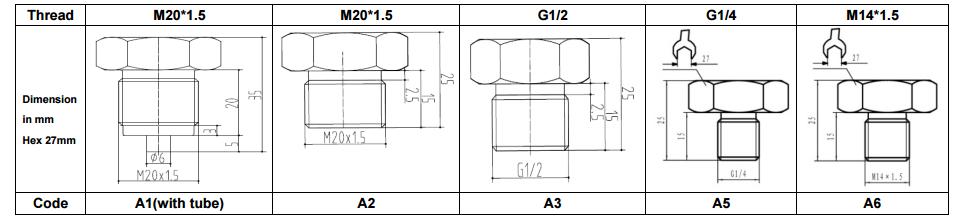

M20×1.5 or customize

Output signal

Cast aluminium alloy(E+H)

Pressure port

316L

O-ring

Fluororubber

Cable

Polyethylene

Insulation resistance

100MΩ  100VDC

Protection

IP65


Note: The wire connection is non-polarity 2-wire connection. The excitation and output can be connected with any side of the wire connecting terminal.
