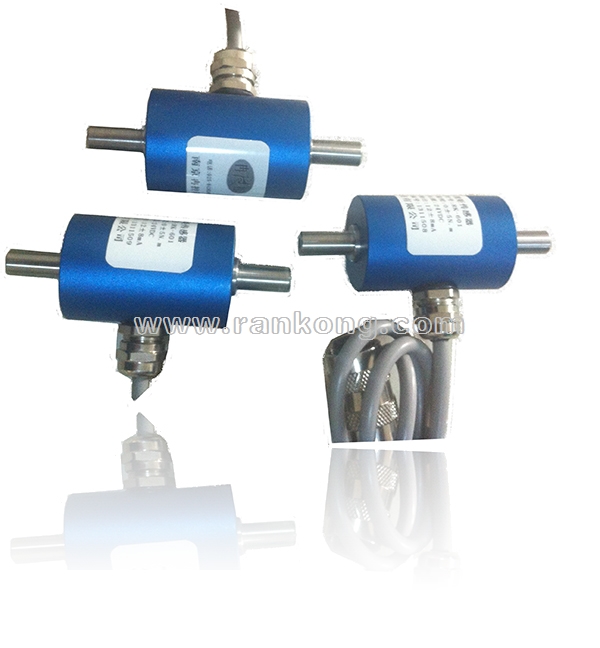

Reaction torque transducer type RK-601

Reaction torque transducer type RK-601

Nominal (rated) torques 50 N.m,
100 N.m, 200 N.m, 500 N.m,
1 kN.m, 2 kN.m, 3 kN.m, 5 kN.m
and 80 kN.m



24-hour national online service:

025-84363968
Reaction torque transducers type RK-601 RD are
used for static and quasi-static applications.
By that way a maintenance-free torque
measuring is possible.
The applications are used for adjusting torque
at machine elements, measuring of stirring
devices and checking motors as well as
hydraulic pumps. These models are suitable
for all flange mounting situations.



Rated capacity ±50 N?m ~ ±3 kN?m
Safe overload 150 %R.C.
Ultimate overload 300 %R.C.
Rated output 0 V ~ ±10 V0 V ~ ±5 V  4-20mA   5-15kHz   485  CAN
Accuracy of detected value Digital : ±0.5 %R.O., Analog : ±0.25%R.O.±0.1%R.O.
(including linearity, hysteresis and repeatablity.)

Work environment：Operating temperature range -20℃~60℃
Overload Capacity: 200%
Accuracy：±0.1%口±0.25%, ±0.5%,口±1.0% (±0.25%)
Linearity：<0.1%
Long Term Stability ：<0.1% FS per year
With a humidity lower than 90%RH
Non-Contact (no slip rings)
No Electronic Components in Rotation
No Electrical Noise
